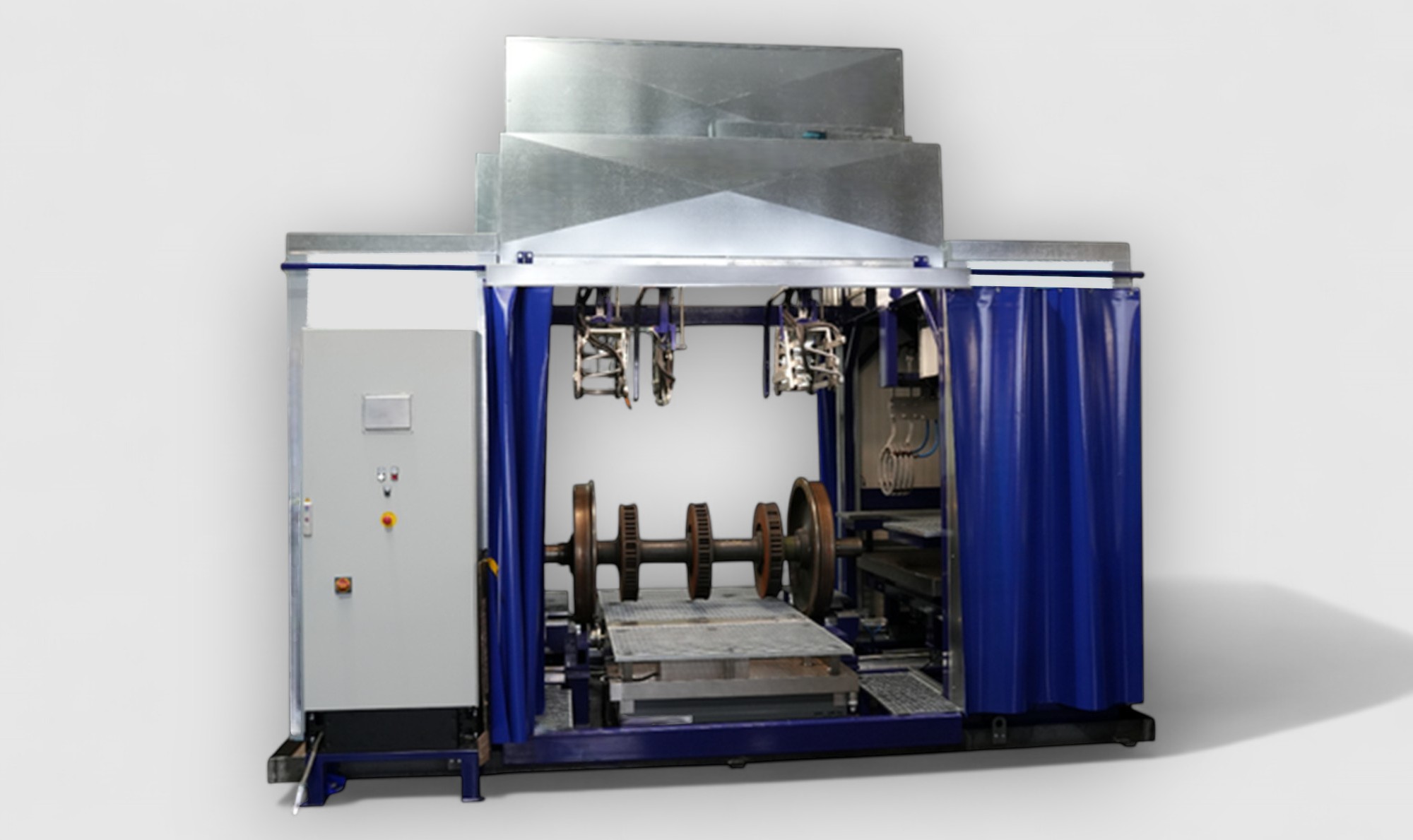

Wheelset testing system UF 2500, is a system specially designed for magnetic particle crack testing of wheel axles.
*Can be adapted to other versions.
The crack testing system for wheelset testing is equipped with a modular magnetization system for targeted testing of different component areas:
- The closed coil (2000 A) is used to test shaft ends,
- The reduced coil (4000 A) is intended for wheels or brake disks,
- and the half coil (2000 A) covers the center area of the axle.
This flexible design of the magnetization devices ensures seamless fault detection for differently shaped test parts.
*Customizable design
Data sheet wheelset crack detection system UF 2500 as PDF document.
Possible magnetization processes
- Closed coil: Indication of transverse cracks
- Reduced coil: Indication of longitudinal cracks and transverse cracks
- Half coil: Indication of transverse cracks
Operation & safety
- User-friendly touch control (HMI)
- Choice of automatic or manual operation
- Operation via panel or pendant control
- Integrated safety function: EMERGENCY_STOP, protective grille, warning systems
- Complies with applicable directives: Machine directives, EMC, DGUV V15
Further equipment features
- Electrically height-adjustable test support
- High-performance test medium pump
- Stainless steel container with return system
- Robust construction for low-maintenance continuous use
ORDER NUMBER:
-
Wheelset tester UF 2500 Order number: 300-024
Technical data
A crack detection system that can be optimized for your application.
Data sheet wheelset crack detection system UF 2500 as PDF document.
