Magnetic particle test benches
We will be happy to advise you on the selection of a universal testing device that is tailored to your field of application.
Our universal crack detecting benches and systems have the following special features:
- Different magnetisation methods, which can be used individually or in combination
- Adjustable clamping lengths
- Test bench with stainless steel tray, ergonomically optimally designed
- Control panel with all regulating and control elements as well as freely programmable controller
- Stainless steel test agent container that can hold 40 litres. Available accessories: coding system, basic inspection tables
- and much more

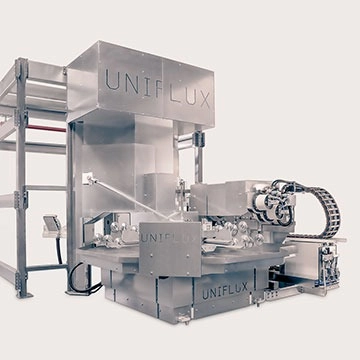

Crack testing machines for non-destructive magnetic particle crack testing of crankshaft blanks
with phase-shifted magnetization circuits - longitudinal cracks via current/auxiliary flow, transverse cracks via coil magnetization. For large components.
The UF1100-4000Unoflux SPE only allows longitudinal and transverse magnetization in separate operations and has one coil.
The UF 1100-1600SPE with two phase-shifted magnetization circuits: Longitudinal via current/auxiliary flow, transverse via coil magnetization.
The UF 700-1000 Unoflux only allows longitudinal and transverse magnetization in separate and consecutive operations in accordance with EN ISO 9934 and ASTME 1444-94a.
The Universal UF 700-1000 has two phase-shifted magnetization circuits, which individually or in combination generate a rotating field for magnetic particle testing in accordance with DIN 54131.
Crack testing system Universal UF 600 - 1000 (GP) with split quill for magnetic particle testing to DIN 54131.

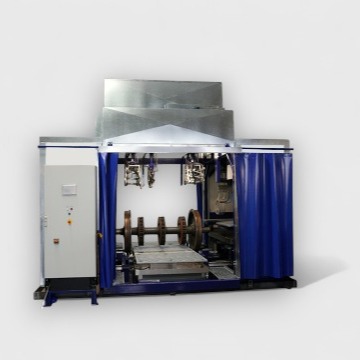

Wheelset testing system UF 2500, is a system specially designed for magnetic particle crack testing of wheel axles.
*Can be adapted to other versions.
Micro-Flux 500 crack detection system for magnetic particle testingof medium-sized components in accordance with DIN 54131.
Crack testing bench for magnetic particle testing of small to medium-sized components in accordance with DIN 54131, Part 1 and EN ISO 9934-3.

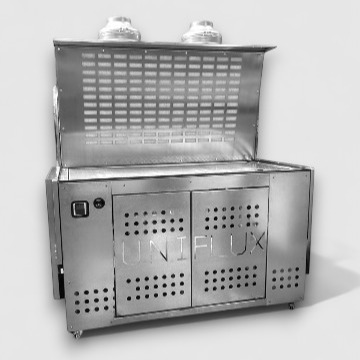

Penetration workstation
PTA - dye penetrant testing.
Read more: Penetrant testing-workstation PTA dye penetrant testing
Machine for non-destructive dye penetrant crack detection
PT test station for non-destructive dye penetrant crack testing
Crack test bench Universal UF AL for magnetic particle testing according to EN ISO 9934 with automatic function sequence.
Aluminium model
